3D printable parts

Below are the 3D parts used to build Spenser.

Description

Part	Image	Description	Downloads

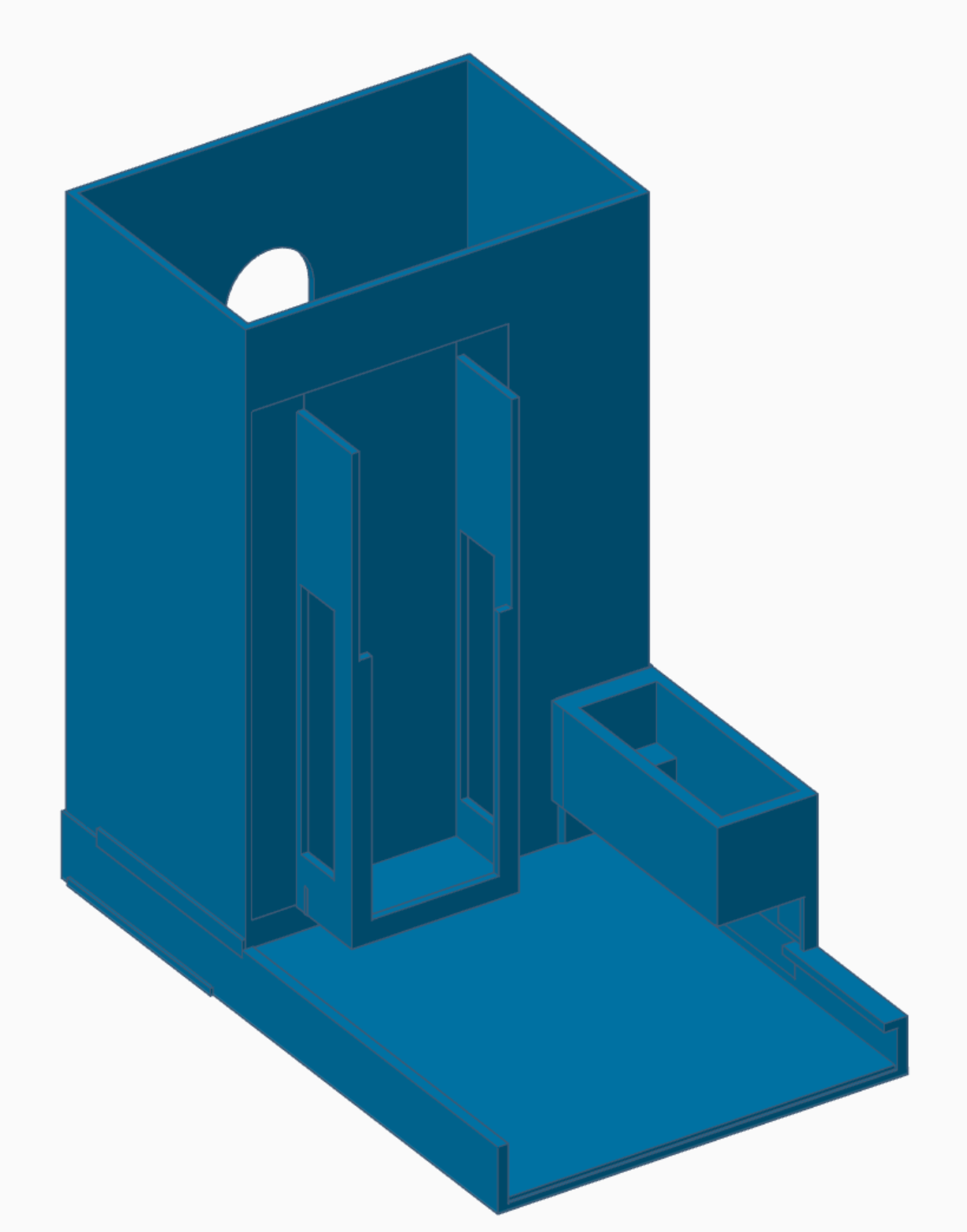

Base Body		Houses the servo motor and guides the pusher.	​STL • GLB • OBJ

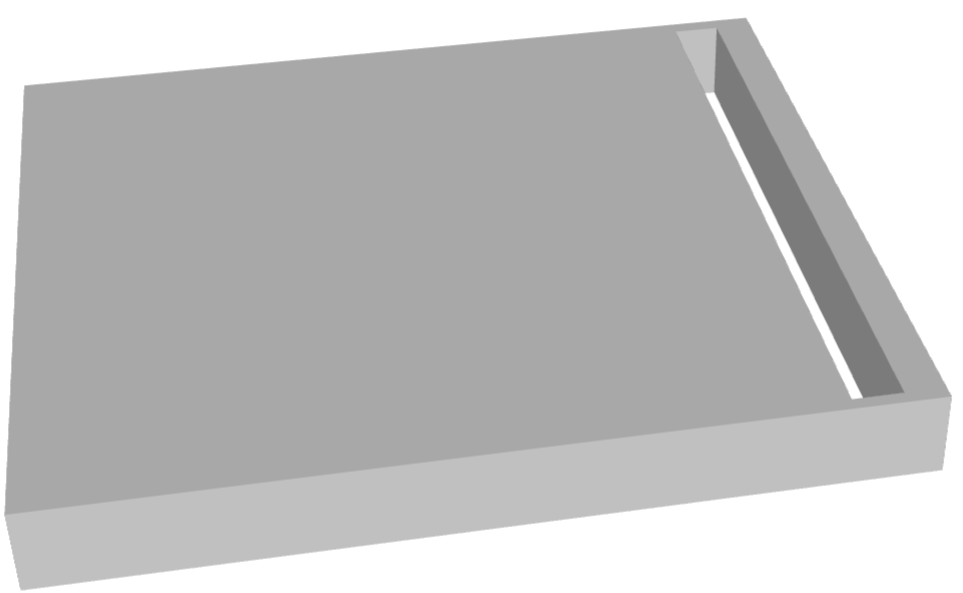

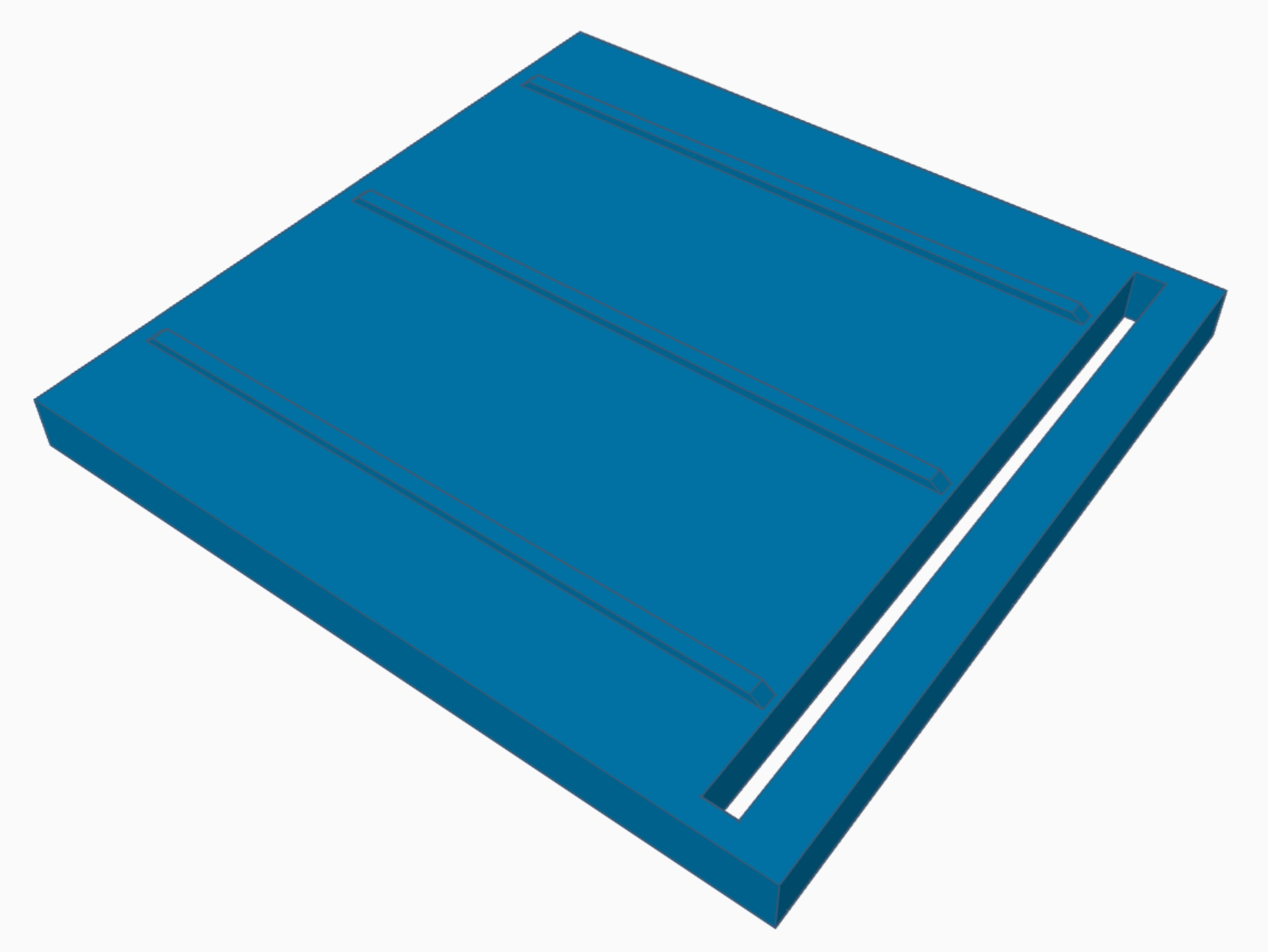

Chocolate Pusher		Moves chocolates forward using the rotating arm.	STL • GLB • OBJ

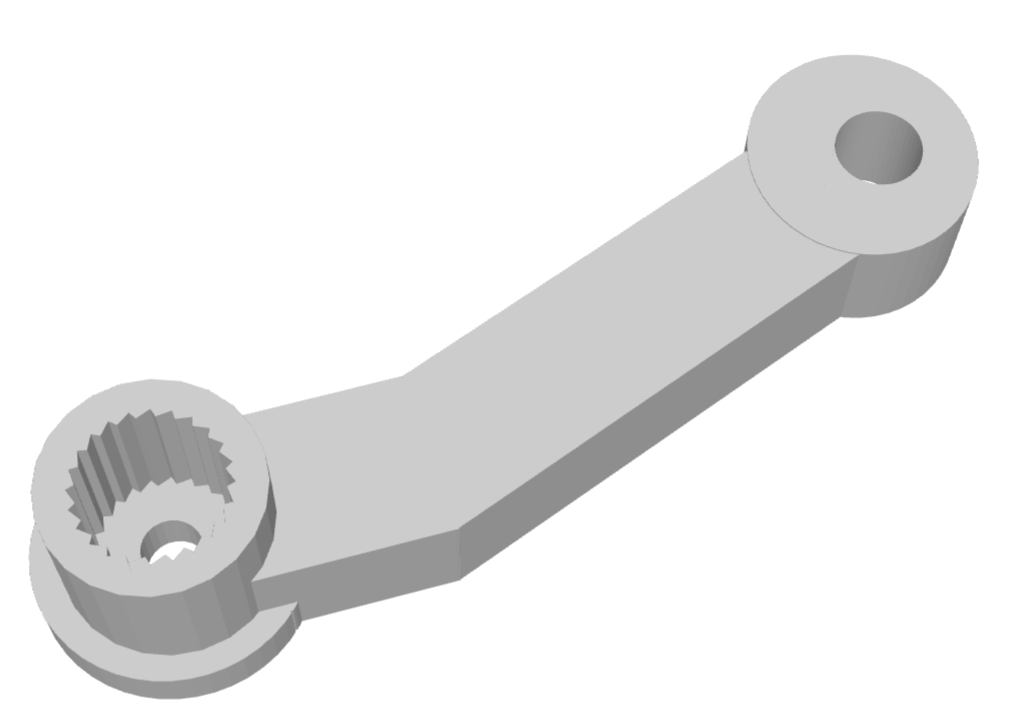

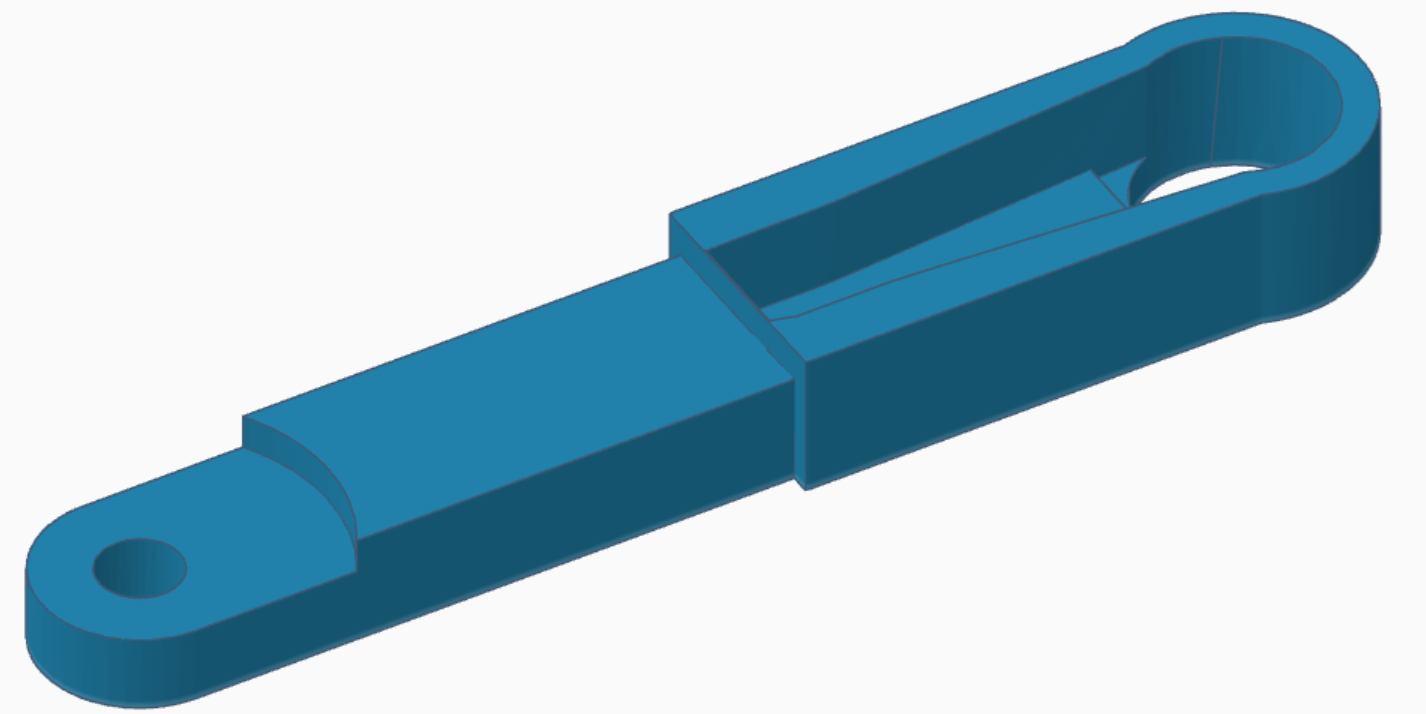

Rotating Arm		Connects to the servo and pushes the pusher.	STL • GLB • OBJ

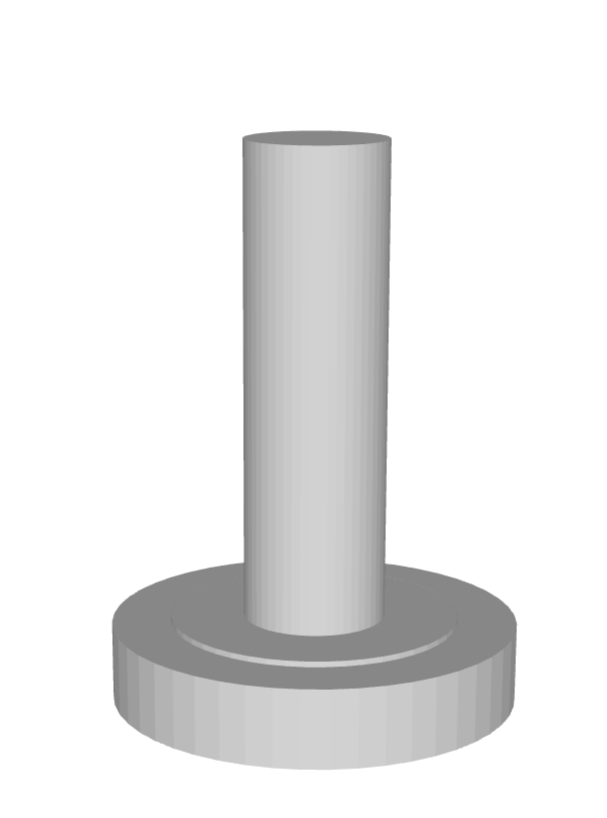

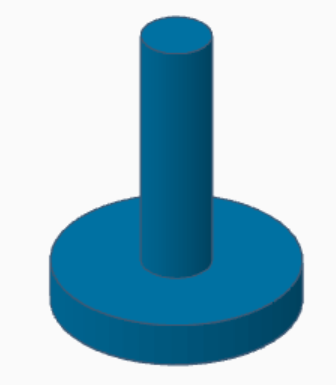

Axle Pin		Axle for articulating the arm and pusher.	STL • GLB • OBJ

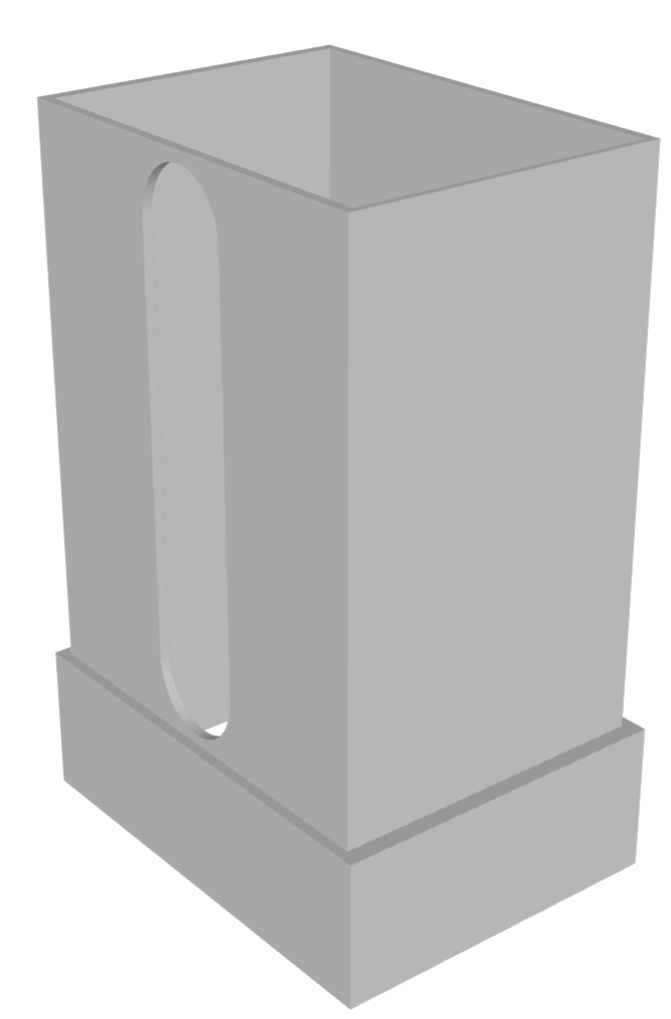

Main Tower		Extension for storing more chocolates.	STL • GLB • OBJ

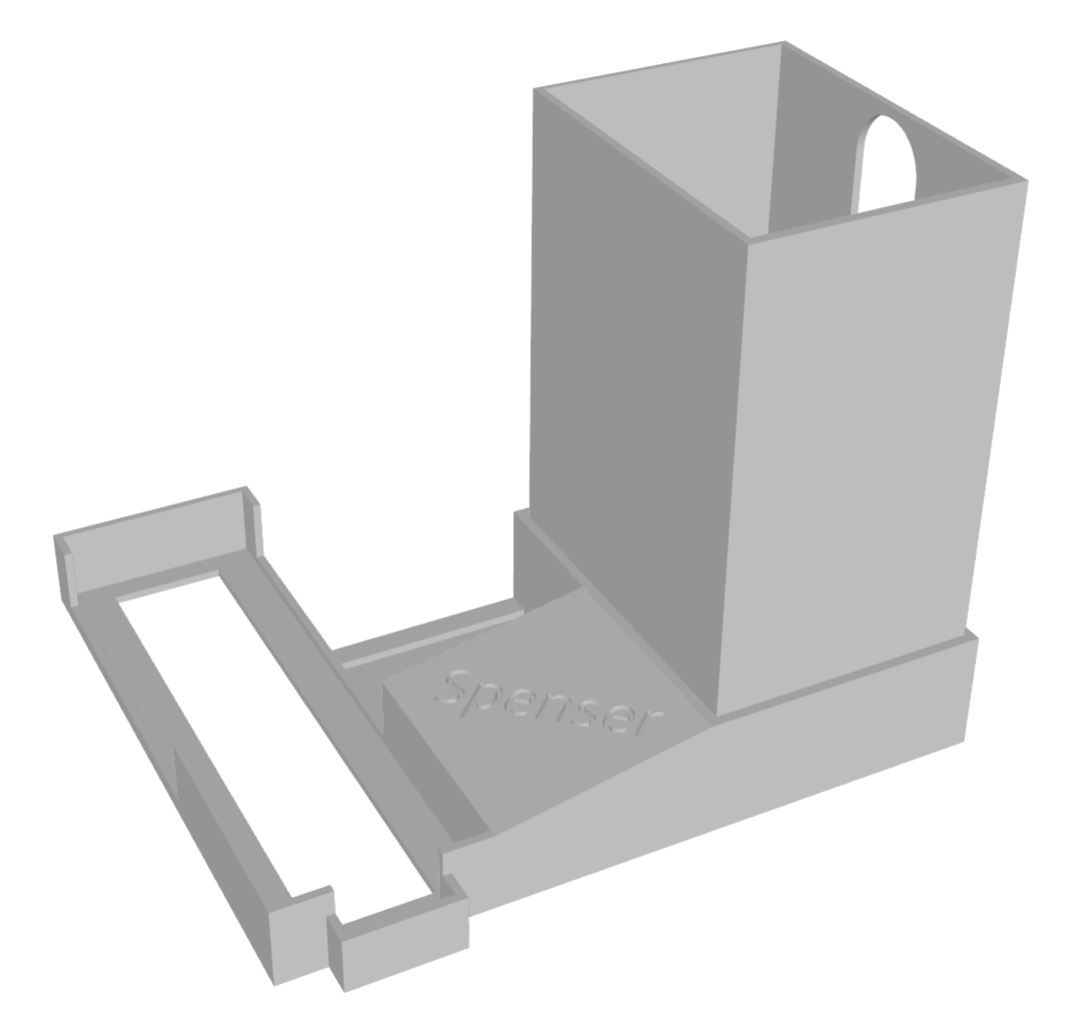

Tower with Motor Mount		Tower with servo controller holder.	STL • GLB • OBJ

Bill of Materials

The quantities indicated are for the 2-position dispenser.

Item	Description	Quantity ()
Main body	Holds the chocolates, the motor, and slider rails	2
Servo arm	Rotating arm attached to the servo	2
Pin	Connects the servo arm to the slider	2
Slider	Pushes a chocolate out	2
Stack module	Extension to increase chocolate storage height	1*
Stack module with Controller holder	Extension to increase chocolate storage height + ESP32 controller holder	1*
Face and base	Keeps it tight and neat	1

*Note: Only one of the stack modules should have the controller holder.
